Project Overview

Noble Power Solutions worked in partnership with Monford Group to undertake the testing and commissioning of the 100MWac Merredin Solar Farm at Merredin, Western Australia.

The scope of work for this project included all testing and pre-commissioning requirements for the 220/33kV Substation for interconnection with Western Power network, as well as testing of the containerised inverter stations and all solar panel testing.

  • Solar Panel testing: Testing included insulation resistance, polarity, open circuit voltage, short circuit current and I-V testing of all strings.
  • DC cabling checks and Inverter Fusing: Performing polarity checks of DC cabling from combiner boxes to inverter stations and installation of DC fuses once polarity proven to be correct
  • Inverter stations: Testing of Ring Main Unit, Circuit Breaker, Step Up Transformer, Current Transformers, protection relays and inverter station earthing system. Works also included establishing communications from Power Plant Controller to inverter stations.

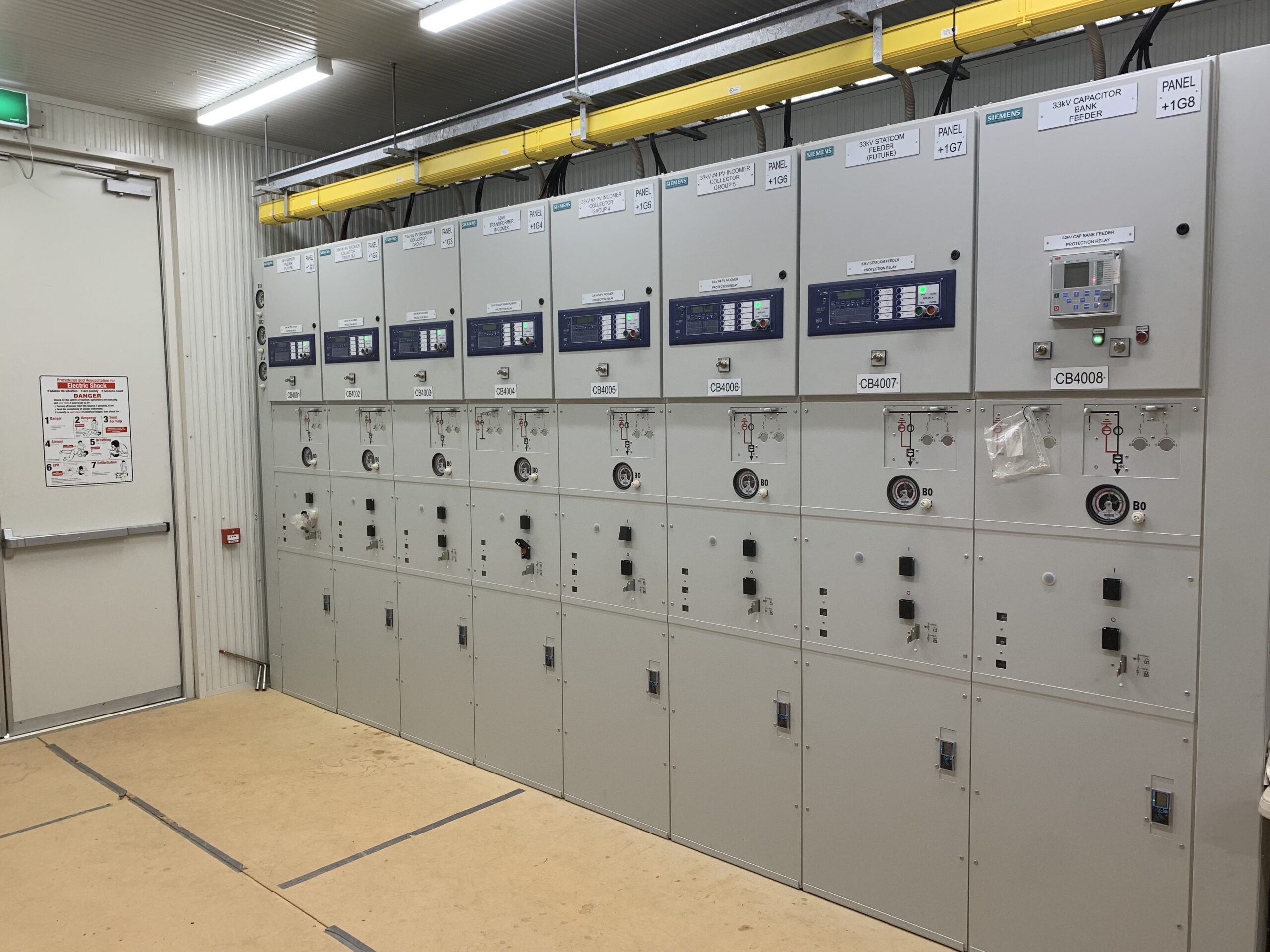

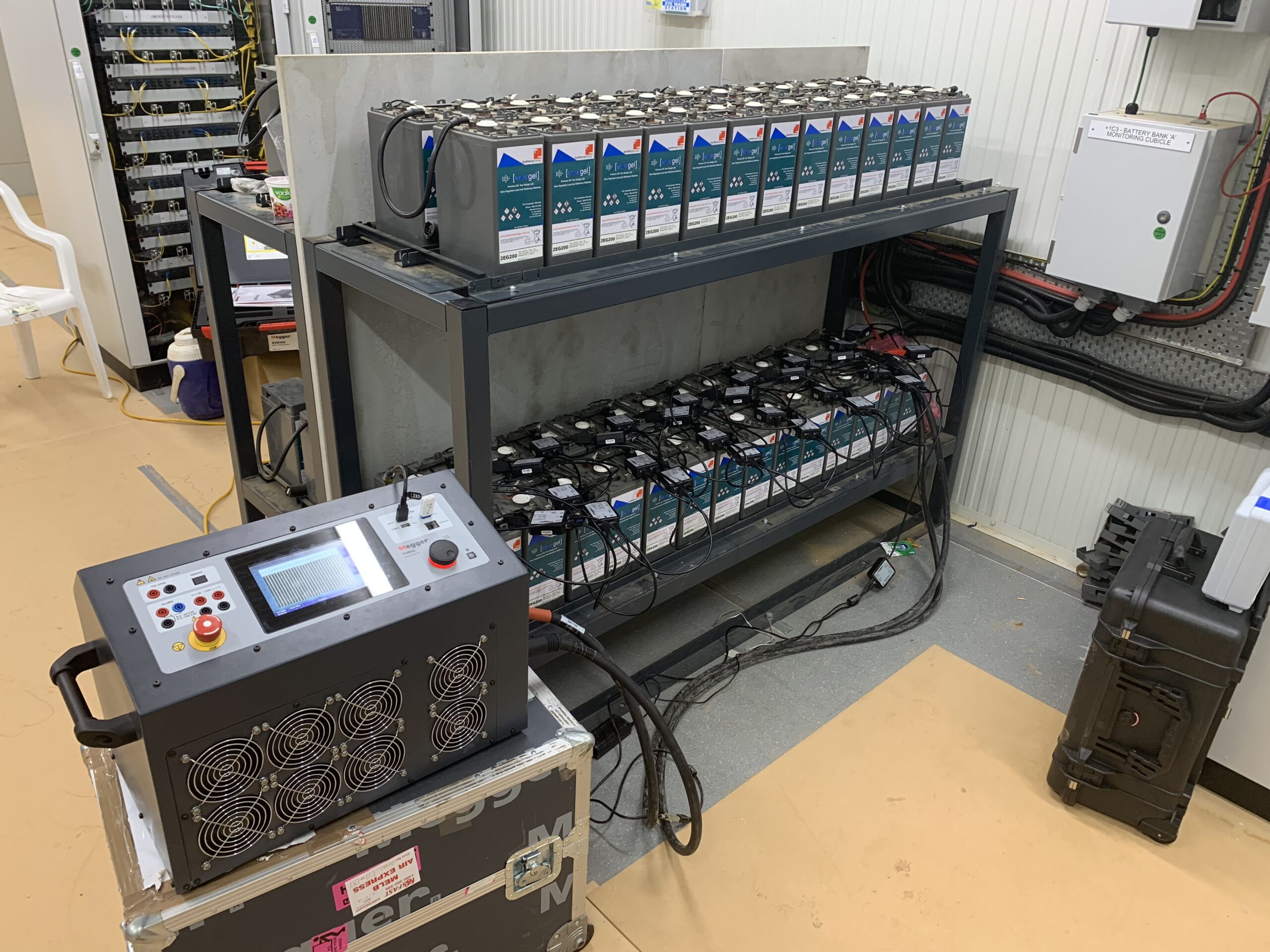

  • 33kV equipment: Testing and pre-commissioning of 33kV switchroom including protection relays, 33kV switchgear, 33kV instrument transformers, SCADA systems and substation 125Vdc battery systems

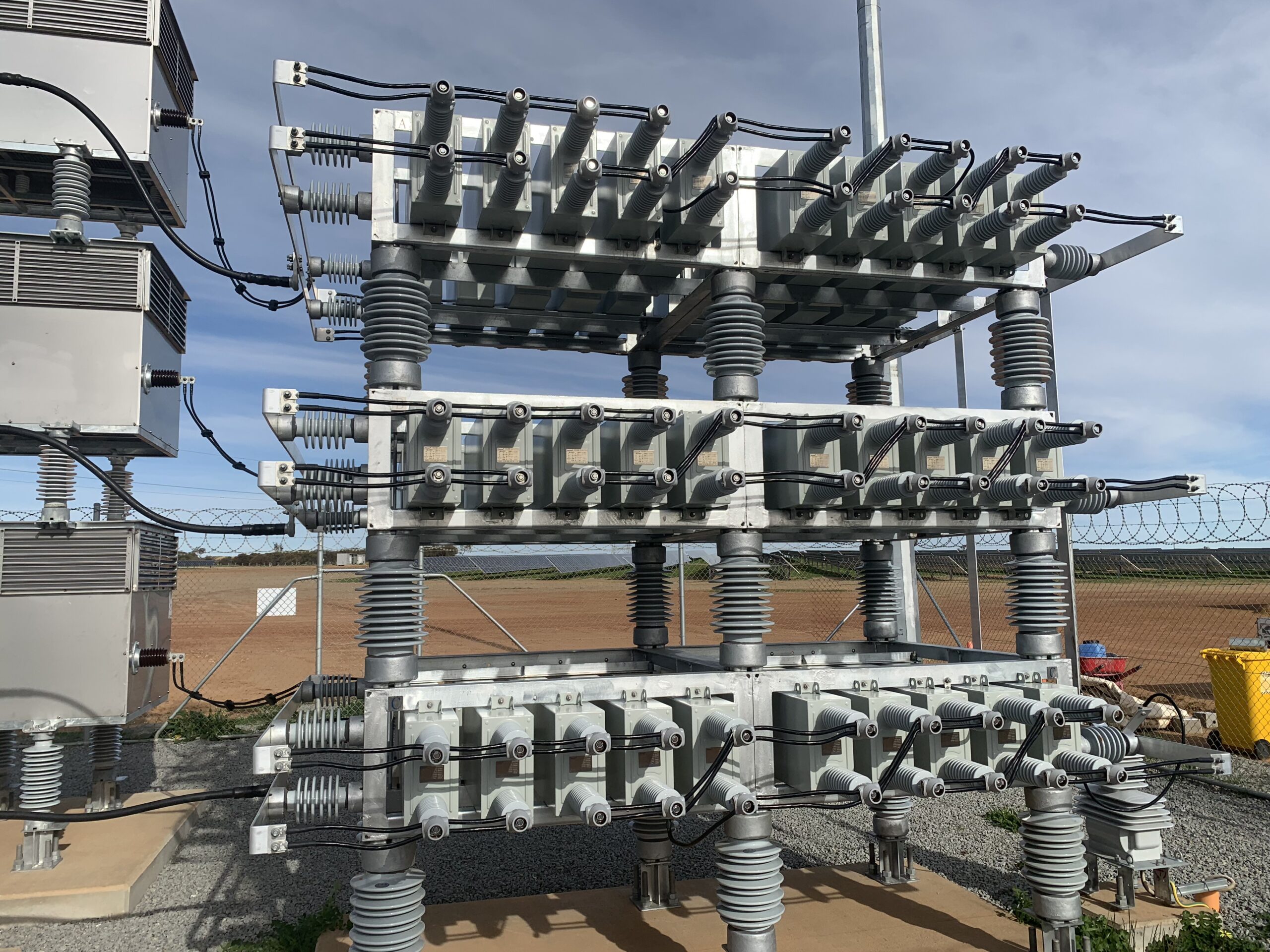

  • 220kV equipment: Testing and commissioning of 220kV circuit breakers, disconnectors, earth switches, bus bars, transformers and substation earthing system

Project Snapshot

Description:
Sun Metals Solar Farm

Location:
Townsville, QLD

When:
02/18 – 10/18

Contracting Sector:
Private High Voltage – Metal Refinery
